High Grade Non-oriented Electrical Steel

Product Name	High Grade Non-oriented Electrical Steel
Origin	Hongwang,China
Standard	GB
Thickness	0.35/0.50
Length	Customized
Width	≤1200mm
Application	Iron cores for electric motors/generators/transformers
Certificate	CE,ISO9001
Processing	Welding, Punching, Cutting, Bending, Decoiling
Sample	Available
Delivery	7~25 days
Packing	Wooden pallet
Moq	2 MT
Business code	Factory directly sell

Product Details

Silicon steel is an extremely low-carbon ferrosilicon soft magnetic alloy indispensable for electric power, electronics, and military industries. It is also the metal functional material with the largest output, and its output accounts for about 1% of the world's steel output.

Grade	Yield strength N/mm2		Tensile strength Rm N/mm2		Elongation %		HV5	Stacking factor %
Grade	L	C	L	C	L	C	HV5	Stacking factor %
35HW230	415	435	520	540	16	18	195	98
35HW250	415	435	520	540	16	18	195	98
35HW370	415	435	520	540	16	18	195	98
35HW300	395	410	510	530	25	26	185	98
35HW360	380	400	490	505	27	29	170	98
35HW440	270	280	415	435	30	32	140	98
50HW250	420	440	520	540	16	18	195	98.5
50HW270	420	440	520	540	16	17	195	98.5
50HW290	420	440	520	540	16	18	195	98.5
50HW310	390	410	510	530	25	27	185	98.5
50HW350	390	410	510	530	25	27	185	98.5
50HW400	380	400	490	510	27	30	170	98.5
50HW470	265	275	420	440	30	32	140	98.5

Grade	Nominal thickness mm	Theoretical density Wg/dm3	The maximum iron loss W/kg	The minimum magnetic induction T	The minimum number of bends	The minimum stacking factor %
				50Hz
				B5000
35HW230	0.35	7.60	2.10	1.62	3	96.0
35HW250		7.60	2.30	1.62	3
35HW370		7.60	2.50	1.62	3
35HW300		7.65	2.70	1.62	6
35HW360		7.65	3.30	1.63	6
35HW440		7.70	4.00	1.65	6
50HW250	0.5	7.60	2.30	1.62	3	97.0
50HW270		7.60	2.50	1.62	3
50HW290		7.60	2.70	1.62	3
50HW310		7.60	2.90	1.62	3
50HW350		7.65	3.10	1.62	6
50HW400		7.65	3.50	1.64	6
50HW470		7.70	3.30	1.70	10

Grade	Nominal thickness mm	Theoretical density Wg/dm3	Iron loss W/kg				Magnetic induction T
			50Hz		60Hz		Magnetic induction T
			1.0T	1.5T	1.0T	1.5T	2500A/m	5000A/m
35HW230	0.35	7.60	0.85	2.06	1.08	2.61	1.57	1.67
35HW250		7.60	0.92	2.20	1.16	2.74	1.58	1.67
35HW370		7.60	1.00	2.33	1.25	2.92	1.58	1.67
35HW300		7.65	1.00	2.45	1.26	3.07	1.60	1.68
35HW360		7.65	1.16	2.69	1.44	3.35	1.60	1.69
35HW440		7.70	1.20	2.82	1.51	3.53	1.64	1.72
50HW250	0.50	7.60	0.96	2.26	1.24	3.01	1.59	1.67
50HW270		7.60	1.01	2.45	1.27	3.06	1.59	1.67
50HW290		7.60	1.07	2.49	1.36	3.20	1.59	1.67
50HW310		7.60	1.16	2.68	1.47	3.44	1.59	1.69
50HW350		7.65	1.18	2.70	1.51	3.45	1.61	1.69
50HW400		7.65	1.23	2.83	1.56	3.62	1.61	1.68
50HW470		7.70	1.35	3.15	1.74	4.06	1.65	1.72

Item Specification	Coil Weight	Standard
0.35-0.50MM	3-5 MT or according to requirement	GB/HONGWANG STANDARD

Company Introduction:

Wuxi Hongwang Stainless Steel Co., Ltd. was founded in 2016, is the professional silicon/electrical steel import and export trading platform of Hongwang Group integrating international trade, storage, processing and after-sales service. It also plays an important role for the international marketing of high quality products manufactured by the group's major manufacturing bases. Wuxi Hongwang establishes a professional international trade service team, equipped with sufficient storage and processing services, to provide professional stainless steel import and export trade services for the majority of oversea customers with fast response, reliable quality, and good after-sales service.

APPLICATION:

OUR SERVICE:

1.Professional work.

2.OEM&ODM, also provide customized service.

3.Offer for your unique design and some our current model.

4.Protection of your sales area, ideas of design and all your private information.

5.Provide strict quality check for each part , each process before export.

6.Provide complete post-sale service, including installation , technical guide.

We have high-tech equipment to processing stainless coils and sheets/plates with skilled workers.

1.Cut to length

2.Despoiling and slitting

3.Grinding and brushing

4.Film protection

5.Plasma and water jet cutting

6.Embossing

7.Mirror or others finish

FAQ

Q1.About the complaint,quality problem,etc aftersales service,how do you handle it?

A1.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.

Q2.How can you ensure the quality of your product?

A2.All products have to go through three checks in the whole manufacturing process,it includes production,cutting sheets and the packing.

Q3.About the complaint,quality problem,etc aftersales service,how do you handle it?

A3.We will have certain colleague to follow our order accordingly for each order with professional after-sales service. If any claim happen, we will take our responsibility and compensate as per contract. For better serve our client, we'll keep tracing feedback of our products from clients and that's what make us different from other suppliers. We're customer care enterprise.

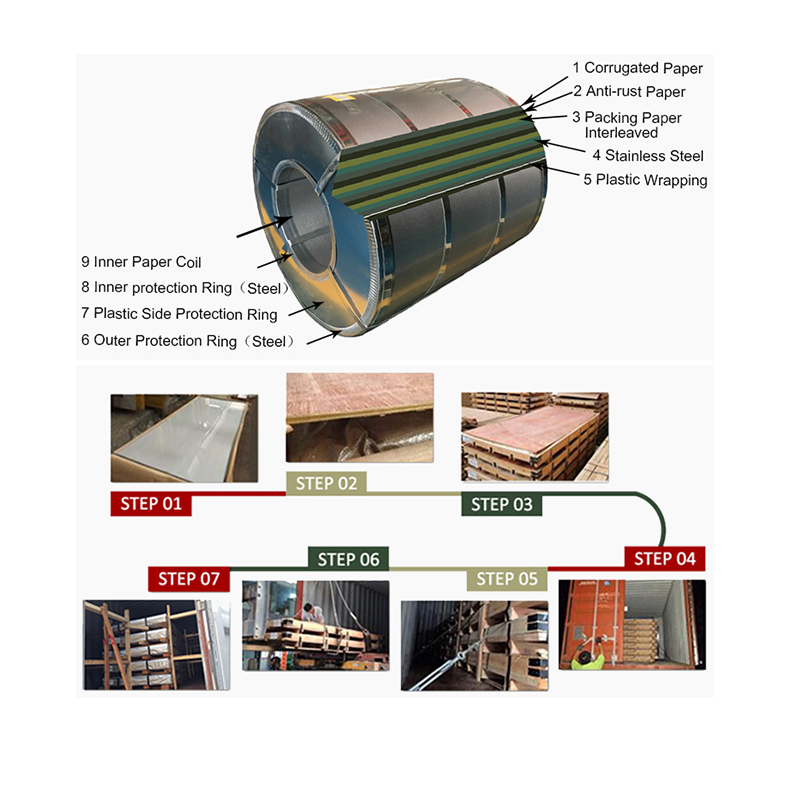

HONGWANG SHIPPING PACKING:

*
*
